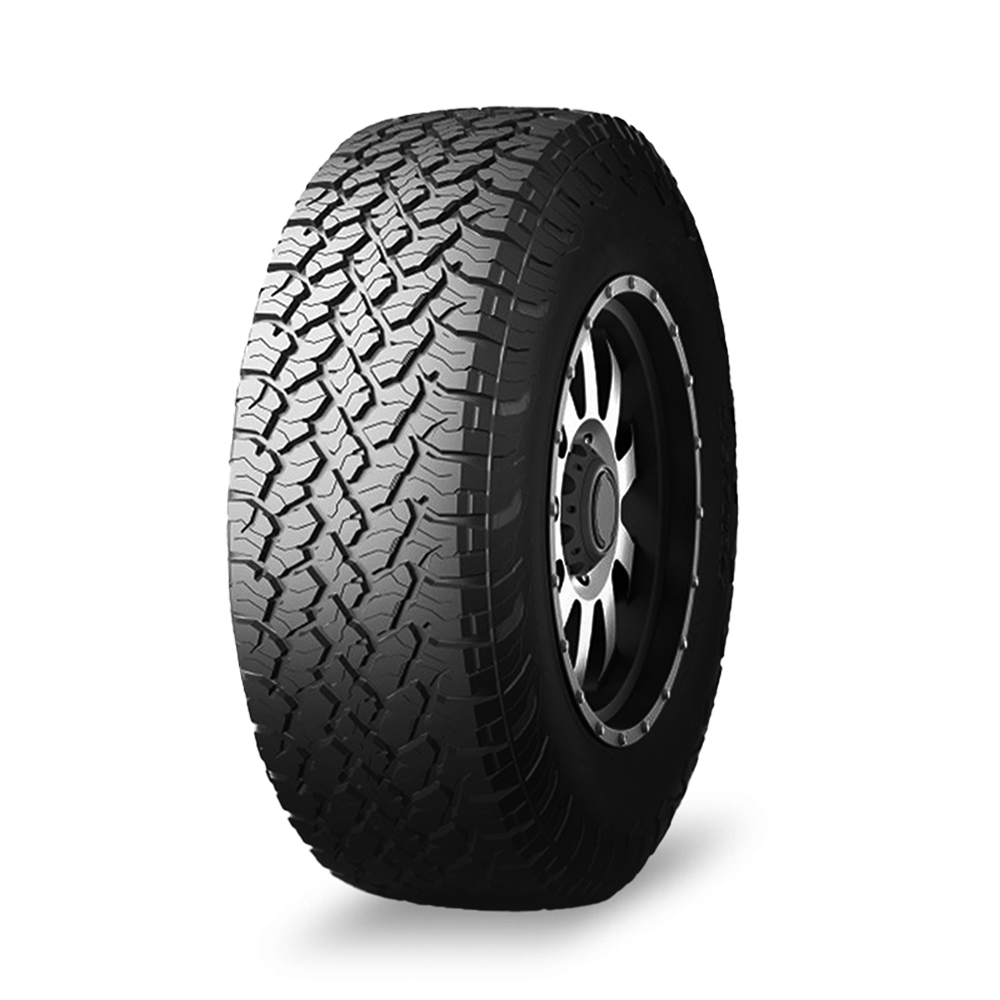

SM-5

Balance performance over various terrains.

Strong Grip Power Zigzag ditch pattern is appropriate for a variety of harsh road conditions. Continuous inclined groove design offers an excellent drainage function as well as a stable grip. Stiff and Sharp Shoulder Zigzag tooth shoulder design provides strong grip and traction capacity, even in muddy field. Thick three-dimensional sidewall protection structure strengthens cutting resistance and protects sidewall against impacts. Balanced Off-Road and On-Road Performance Variable pitch combination reduces noise at high speed. Reinforced tire structure and multi-layer matrix material work together to improve tire strength.

Share To

TECHNICAL SPECIFICATIONS

Size	Loading Index	Load Capacity (kg)	Speed Rating	Standard Rim	Section Width (mm)	Overall Diameter (mm)	Max. Pressure (kPa)	UTQG
235/70R16	106	950	T	7J	240	736	300	560 A B
265/70R16	112	1120	T	8J	272	778	300	560 A B
275/70R16	114	1180	S	8J	279	792	300	560 A B
265/65R17	112	1120	S	8J	272	776	300	560 A B
275/65R17	115	1215	S	8J	279	790	300	560 A B
285/65R17	116	1250	S	8 1/2J	292	802	300	560 A B
265/40R18	101 XL	825	V	9 1/2J	271	669	340	560 A B
